M2 Spray analyzer
Optical fiber Doppler probe for accurate measurements of
Droplet size, droplet velocity and liquid fraction

contact us

Explore very dense sprays and collect data from difficult-to-measure places

The M2 Spray analyzer performs local measurement of droplet size and velocity. The system is composed of a probe, immersed in the flow, a remote electronic unit and a software application for processing and analysis. Data processing can be done in a fully assisted manner in most cases but can also finely tuned for better control in complex situations.

Size
Down to 5 μm
No upper limit

Velocity
0.01 to 80 m/s

Liquid fraction
0 to 100%

Operating conditions
From cryogenic temperature up to 250°C
Up to 100 bars
Suitable for non-transparent liquids

Setup
Up and running in minutes

download datasheet

OFDP: more than the sum of its parts

The Optical Fiber Doppler Probe technique designed by A2 Photonic Sensors is the fruit of more than 25 years of research. It results from the combination of phase optical probes with laser Doppler velocimetry. A micrometric sensor head is manufactured at the tip of an optical fiber. Once immersed in the spray, the optical fiber probe acts as both the laser emitter and light detector, and will measure all droplets reaching its tip. The miniaturized size of the sensing part guarantees a very low disturbance to the flow, hence a high accuracy of the measurement.

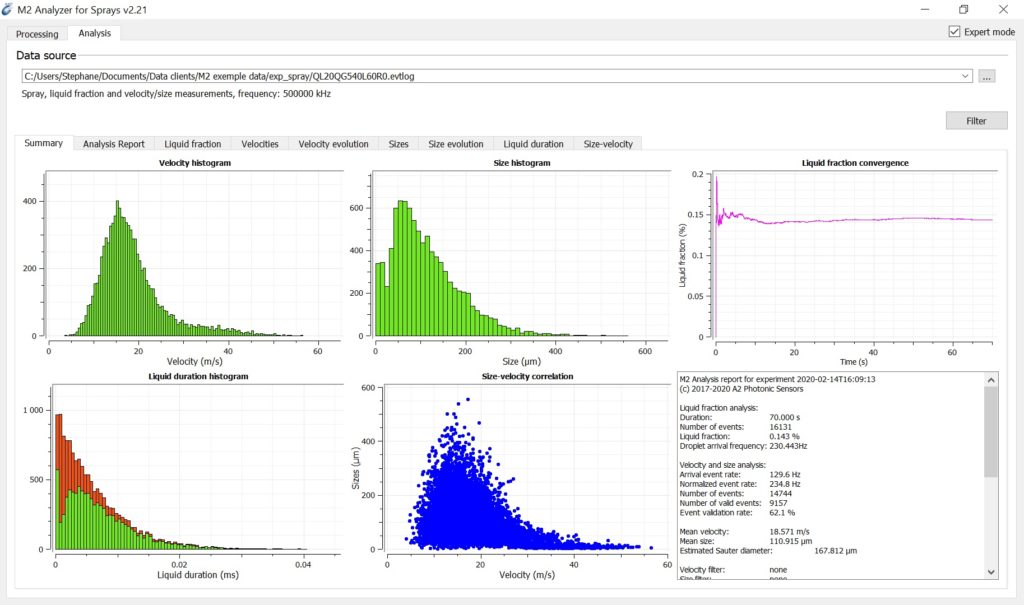

Software and data processing

  • Simple and fast automated processing or advanced in-depth analysis
  • Optional acquisition triggering
  • Full access to raw data
  • Size and velocity distributions, size/velocity correlation
  • Easy data export

Designed for a wide variety of applications, from fundamental research to industrial R&D

  • Spray nozzle for turbomachinery
  • Atomization fundamental study
  • Agricultural spraying
  • Spray for fire safety
download App cases
  • Rain in climatic wind tunnel
  • Spray drying
  • High pressure cleaning
  • Spray painting
